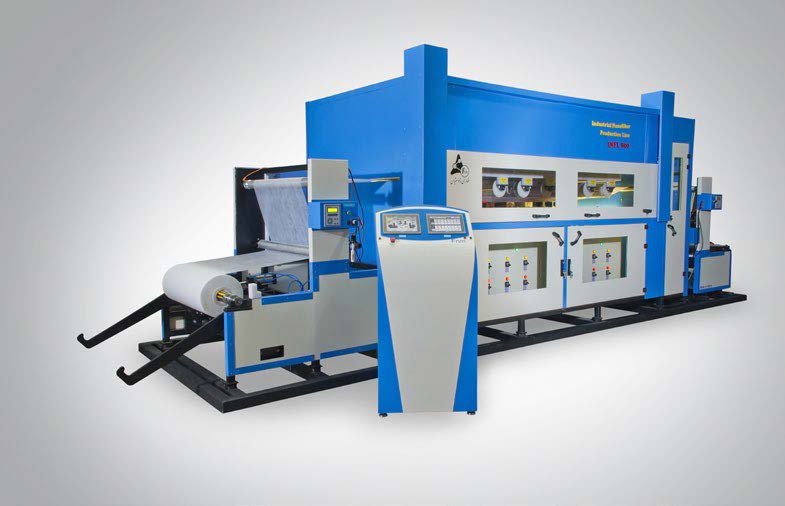

Industrial Nanofiber Production Line (INFL) Overview Introduction Industrial Nanofiber Production Line (INFL) is an industrial-scale electrospinning nanofiber production machine that can coat one-meter width substrates with 60-500 nm diameter nanofibers. This production line can be offered in both needleless or needle-type e-spinning. In the needleless production line, the needleless rotary spinneret is partially immersed into the polymer solution and a high strength electric field is applied to the solution bath and collector (rotating drum). This results in the formation of numerous jets from the spinneret and consequently, the formation of a layer of nanofibers on the collector. Application Deposition of nanofiber on different substrates in large-scale Production of nano-fiber based filters and face masks Certificates and standards Certificate of Nanotechnology Nanotechnology in Product Using this production line, different nanofibers can be deposited on various substrates in industrial scale. Device model INFL400 INFL800 INFL1000 No. of Electrospinning units 4 6 8 Power Supply • Single-phase, 220 V AC, 50-60 Hz • Three-phase, 380 V AC, 50-60 Hz (customer order) High Voltage Power Supply • 50 kV DC, Positive/ Negative Polarity • Digital Display of Voltage with a Precision of 0.1 kV • 50 kV DC, Positive/ Negative Polarity • Digital Display of Voltage with a Precision of 0.1 kV Spinneret (needleless e-spinning) • Material: steel • Diameter: 6 cm • Length: 30-160 cm (based on order) • Rotation Speed: 1-20 rpm Nozzle (needle-type e-spinning) • Material: steel • No. of Nozzles: 10 to 50 in each unit • Length: 30-160 cm (based on order) • Number: 20 to 100 in each unit • Min. Injection Rate: 100 L/h • Max. Injection Rate: 20 mL/h Collector • Material: steel • Dimension: Depending on the spinneret dimension • Working distance: 5-20 cm Heating system Ambient to 40 °C Control Panel • PLC with HMI Interface • Emergency Stop Button Ventilation System Removing solvent from chamber using a ventilation fan with scheduled operation time. Winding System • Winding Speed: up to 1000 m/h • Max. Substrate Width: 1 m Chamber Metallic chamber equipped with 6 doors on side walls for easily monitoring the process Nanofiber Diameter 60 to 500 nm Dimensions • L: 4 to 8 m (based on order and number of units) • W: 1 to 2 m (based on order and unit’s width) • H: 2 to 2.5 m (based on order) Weight 1500 to 3500 kg (based on order and number of e-spinning units) AddToCartModal ×
